Stock #  100660

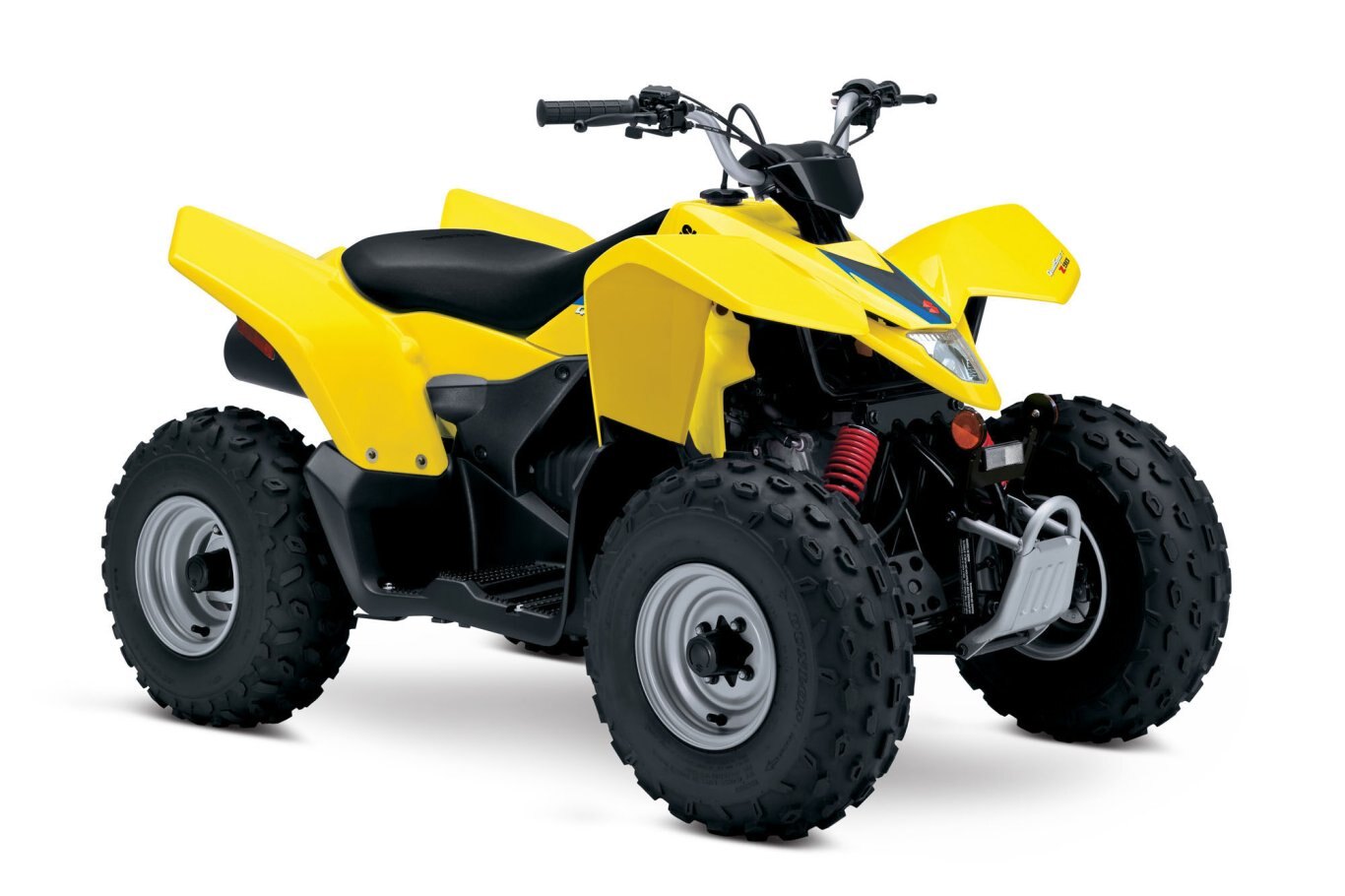

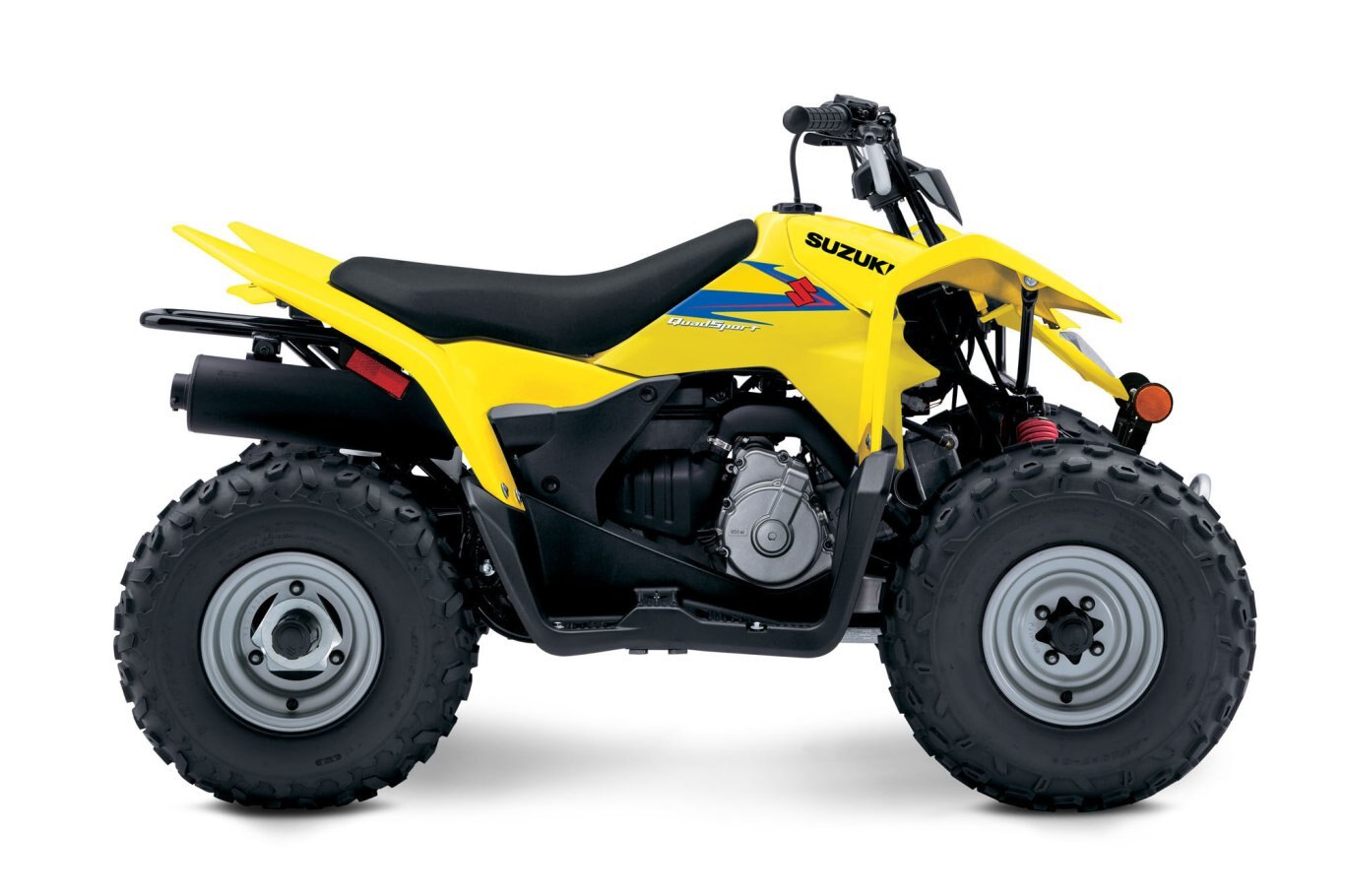

2025 SUZUKI LT-Z90M5

Dealer Price $4,679 CAD
+ hst
Specifications
Model
QuadSport Z90
Category Name
ATVs
Year
2025
Sale Type
New
Manufacturer
Suzuki
Vin
RFDAD41B4S1100660
Color
YELLOW
Class
A
CodeName
QuadSport Z90
Model Code
LT-Z90M5
Titlestatus
CLEAN
Unitcondition
EXCELLENT
Model Code
LT-Z90M5
engine
Type
4-stroke, air-cooled
Starter
Electric and recoil
Ignition
Electronic ignition (CDI)
Fuel System
MIKUNI VM16, single
Lubrication
Wet sump
Displacement
90cc
Bore X Stroke
45.5 mm (1.791 in) x 55.2 mm (2.173 in)
Compression Ratio
9.5 : 1
chassis
Width
875 mm (34.4 in)
Length
1505 mm (59.3 in)
Curb Mass
127 kg (280 lb.)
Fuel Tank
6.0 L (1.6/1.3 US/Imp gal)
Wheelbase
1005 mm (39.6 in)
Tires Rear
AT19 × 7-8 tubeless
Brakes Rear
Drum brake
Seat Height
650 mm (25.6 in)
Tires Front
AT19 × 7-8 tubeless
Brakes Front
Drum brake
Suspension Rear
Swingarm type, coil spring, oil damped
Suspension Front
Independent, swing axle, coil spring, oil damped
features

COMPACT ENGINE

Compact 90cc 4-stroke, single-cylinder, air-cooled engine designed for durability and low maintenance.

ELECTRIC START

Electric starting system with a keyed ignition switch plus standard backup recoil starter.

LARGE FUEL TANK

Large 6.0L (1.3 imp gal.) fuel tank for long operating range combined with vacuum fuel petcock for low maintenance.

THROTTLE LIMITER

Simple screw-type throttle limiter allows adult supervisors to limit the maximum power deliver to suit a rider’s ability.

STYLE

Modern styling with full floorboards and a big Quad look, plus bright yellow or white paint and graphics.

COMFORTABLE RIDE

Strong, high-rigidity steel frame is sturdy and compact. This machine has a low seat height of just 25.6 inches. Suzuki T-shaped seat for smooth weight transition and a comfortable ride, and is easy to remove for simple maintenance.

drive train
Final Drive
RK530, 60 links
Transmission
Automatic
