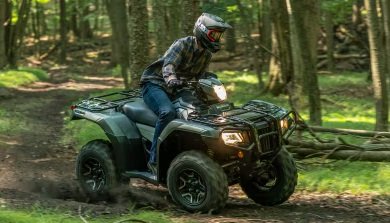

2027 Honda Rubicon 520 DCT Deluxe Automatic

  • 2027 Honda Rubicon 520 DCT Deluxe Automatic
  • 2027 Honda Rubicon 520 DCT Deluxe Automatic
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Master the Workday and own the Weekend

The Rubicon 520 DCT IRS EPS Deluxe is the most refined version of our versatile workhorse. It pairs the high-tech Dual-Clutch Transmission and smooth IRS suspension with unique styling cues and aluminum wheels. For those who want a machine that looks as good as it performs, the Deluxe offers a top-tier off-road experience that stands out on the trail and the job site alike.

Specifications
Model
Rubicon
Category Name
ATVs
Year
2027
Sale Type
New
Manufacturer
Honda
Color
Mat Timberwolf Grey Metallic
Tires
Front: 25 x 8-12 Rear: 25 x 10-12
Width
1,205 mm (47.4 in)
Brakes
Front: dual 190 mm discs Rear: 170 mm disc
Length
2,185 mm (86.0 in)
Wheelbase
1,294 mm (50.9 in)
Curb Weight
326 kg (719 lb)
Engine Type
Liquid-cooled longitudinally mounted single-cylinder
Final Drive
2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing/locking front differential
Valve Train
OHV, 2 valves
Displacement
518 cc
Transmission
Fully automatic, five-speed, Dual-Clutch Transmission with Selectable Electric Shift Program (ESP) plus Dual-range sub-transmission and reverse
Bore & Stroke
96.0 mm x 71.5 mm
Fuel Delivery
PGM-FI electronic fuel injection
Fuel Capacity
14.7 L, including 4.9 L reserve
Rack Capacity
Front rack: 45 kg (99 lb) Rear rack: 85 kg (187 lb)
Power Steering
Standard, Electric Power Steering
Rear Suspension
Adjustable independent double-wishbone; 215 mm (8.5 in) travel
Towing Capacity
600 kg (1,322 lb)
Front Suspension
Independent double-wishbone; 185 mm (7.3 in) travel
Ground Clearance
247 mm (9.7 in)
Compression Ratio
9.5:1
engine & drivetrain

2027 Honda Rubicon 520 DCT Deluxe AutomaticMaximum Efficiency

Powerful liquid-cooled 518 cc engine is longitudinally mounted, allowing direct driveshaft alignment to both the front and rear wheels for maximum drivetrain efficiency. Liquid cooling provides consistent engine operating temperature in extreme conditions for maximum power output and long engine life.

2027 Honda Rubicon 520 DCT Deluxe AutomaticBroad Powerband

Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband.

2027 Honda Rubicon 520 DCT Deluxe AutomaticReduced Vibration

Rubber-cushion engine mounting and gear-driven counter-balancer reduce vibration.

2027 Honda Rubicon 520 DCT Deluxe AutomaticEasy Start

Convenient electric starting gets you going quickly and easily.

2027 Honda Rubicon 520 DCT Deluxe AutomaticFuel Efficient

Programmed Fuel Injection (PGM-FI) improves power delivery and throttle response, and increases fuel efficiency for extended range.

2027 Honda Rubicon 520 DCT Deluxe AutomaticRecoil Starter

Also equipped with a recoil starter as back-up.

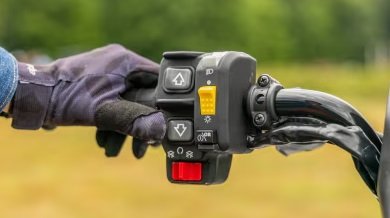

2027 Honda Rubicon 520 DCT Deluxe AutomaticDual-Clutch Transmission

Automatic Dual-Clutch Transmission (DCT) provides the compact size and strength of a manual transmission with the convenience of an automatic transmission (plus no belts to slip, break or burn out). In addition to the fully automatic mode, the DCT transmission also allows riders to employ Honda’s Electric Shift Program (ESP) for easy shifts with the touch of handlebar mounted buttons. Dual-range sub transmission allows you to easily select between high and low range via a conveniently placed lever. The 5-speed Dual Clutch Transmission will operate fully within either range, helping ensure that you can always select the correct ratio for the conditions.

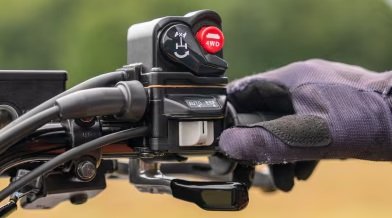

2027 Honda Rubicon 520 DCT Deluxe AutomaticIntegrated Electric Reverse Shift Lever

The integrated electric reverse shift lever allows you to select reverse without ever taking your hand off the handlebars. You can even by-pass Neutral; D to R which is ideal for plowing or tight maneuvering areas.

2027 Honda Rubicon 520 DCT Deluxe AutomaticQuiet Operation

A sub-chamber in the air cleaner reduces resonant noise for quieter operation. Stainless-steel exhaust system includes a USDA-qualified spark arrester/muffler designed for quiet operation and long-lasting performance.

2027 Honda Rubicon 520 DCT Deluxe AutomaticPowerful Output

High output 595 watt alternator has extra capacity to help power electrical accessories and to keep personal electronics charged.

2027 Honda Rubicon 520 DCT Deluxe AutomaticExcellent Drivability

Super heavy-duty automatic clutch with low-rpm engagement for excellent drivability and towing capacity.

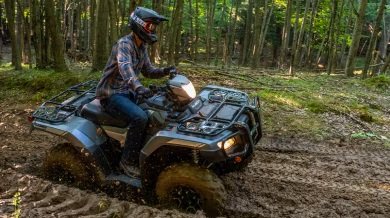

2027 Honda Rubicon 520 DCT Deluxe AutomaticTackle any Terrain

2WD/4WD system offers three drive modes: 2WD; 4WD with torque-sensing front differential; and 4WD with locked front differential to optimize traction. The system also features a Speed Override mode that can be engaged when the front differential is locked to allow increased wheel speed under severe conditions, such as deep mud.
chassis & suspension

2027 Honda Rubicon 520 DCT Deluxe AutomaticStrong and Lightweight

Durable double-cradle steel frame developed with Computer Aided Engineering is sturdy and lightweight for precise handling and a smoother ride.

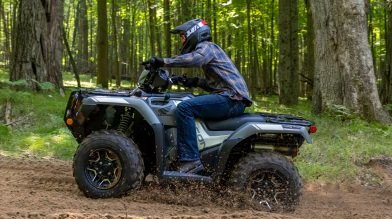

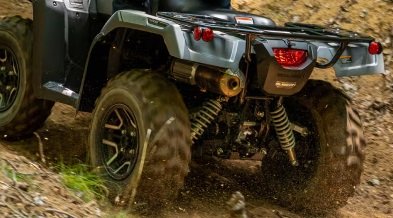

2027 Honda Rubicon 520 DCT Deluxe AutomaticIndependent Rear Suspension, Excellent Handling

Double A-arm independent front suspension provides 185 mm (7.3 in.) of well-controlled travel, providing a sense of security and control over difficult terrain. Independent Rear Suspension (IRS) design with lower A-arm and upper I-arm features optimized stiffness for improved handling performance, and an ample 215 mm (8.5 in.) of travel. Durable wrap-around guards protect the rear suspension’s lower A-arms when rock crawling. Adjustable spring preload on all shocks allows suspension to be tuned to match varying loads and riding conditions.

2027 Honda Rubicon 520 DCT Deluxe AutomaticDurable Comfort

Aggressively styled Maxxis tires provide excellent comfort and traction. Plastic CV joint boots on the front driveshafts are tough and tear-resistant with sealed steering-knuckle bearings for extended durability.

2027 Honda Rubicon 520 DCT Deluxe AutomaticStrong Stopping Power

Dual front hydraulic disc brakes with large 190 mm rotors provide strong stopping power. The brake calipers feature a built-in scraper system that removes mud and snow from inside the front wheel to help prevent build-up of debris between caliper and rim for consistent braking performance. Inboard rear disc brake is mounted on the rear driveshaft, reducing unsprung weight and keeping the disc out of harm’s way in rugged conditions.

2027 Honda Rubicon 520 DCT Deluxe AutomaticElectric Power Steering (EPS)

Our Electric Power Steering (EPS) is both speed- and torque-sensitive and excels at reducing steering effort and kickback through the handlebar. This is a big help when riding in rugged terrain like ruts, rocks, and other challenging environments.
additional features

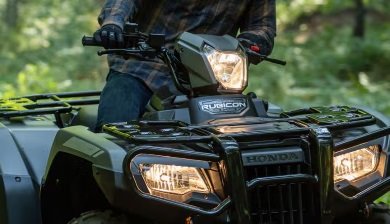

2027 Honda Rubicon 520 DCT Deluxe Automatic Bold Bodywork

All-steel full-sized front bumper wraps around the headlights, improving protection and adding to the Rubicon’s aggressive appearance. The bumper also features an integrated mount for an accessory winch. Bold bodywork offers excellent mud and debris protection.

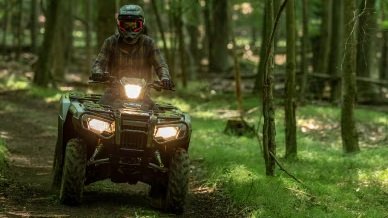

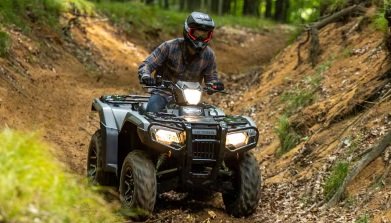

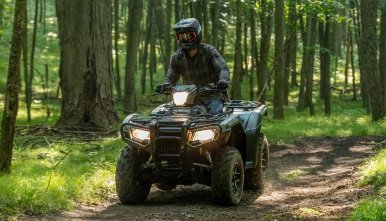

2027 Honda Rubicon 520 DCT Deluxe Automatic Strong Visibility

Twin-headlight system features 35-watt headlights with focused light distribution for improved visibility after dark. The headlight dimmer switch makes it easy to change between high and low beams to activate the top assist 50-watt light for more illumination when you need it or allowing it to be turned off while carrying a load on the front carrier.

2027 Honda Rubicon 520 DCT Deluxe Automatic Automotive Technology

The fuel pump derived from Honda automobile technology is mounted in the fuel tank for better heat isolation and increased filter life.

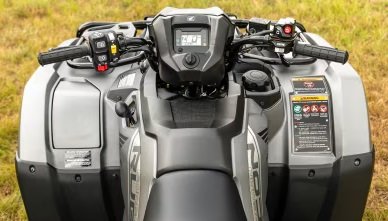

2027 Honda Rubicon 520 DCT Deluxe Automatic Information at a Glance

Full-function instrumentation gives the dash a modern look while providing information at a glance. The display includes speed, odometer, trip meter, fuel gauge, coolant temperature, clock, gear position indicator, 4WD indicator and even a Maintenance Minder system that notifies when it’s time for service.

2027 Honda Rubicon 520 DCT Deluxe Automatic All-day Comfort

Substantially larger and thicker than the seats found on more utility-focused models, the Rubicon’s seat provides all-day comfort. A textured seat cover is cooler on hot days and provides a more secure feeling, especially against synthetic riding-gear materials. Half-waffle-style hand grips, similar to those on Honda off-road motorcycles, offer improved comfort while maintaining a secure hold in wet or muddy conditions.

2027 Honda Rubicon 520 DCT Deluxe Automatic Pro-ConnectTM Rack System. Excellent Load and Towing Capacity

Pro-ConnectTM Rack System for accessories. Mount accessories directly and quickly to the rear or front rack of your Rubicon using easy Pro-ConnectTM Rack System (no tools required). Our purpose-built line of Pro-ConnectTM accessories helps to keep your gear in place and more secure wherever you place your items on the rack while maximizing storage. Front and rear steel-tube carriers feature large steel plates and additional tie-down points for improved load security. Load capacity for the large front and rear carriers is 45 kg (99 lb) and 85 kg

2027 Honda Rubicon 520 DCT Deluxe Automatic Powerful Towing

Heavy-duty trailer hitch with 600 kg (1,322 lb.) towing capacity.

2027 Honda Rubicon 520 DCT Deluxe Automatic Multi-Functional

A host of optional accessories allow you to tailor your Rubicon to your needs.

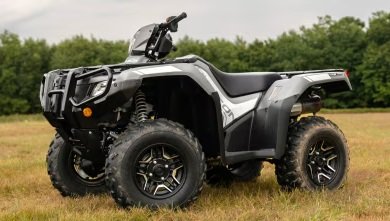

2027 Honda Rubicon 520 DCT Deluxe Automatic Deluxe Features

The Rubicon Deluxe model adds; lightweight aluminum wheels, silver-paint shock springs and suspension arms, Mat Bliss Blue Metallic painted colour with graphics.
